Digital Calipers: Which to Buy and Which to Skip

RBE top pick

Mitutoyo 500-196-30 ABSOLUTE Digimatic Caliper

Check price on Amazon See why it wins Compare all

Mitutoyo publishes plus or minus 0.001 inch over the whole 0 to 6 inch range and claims about 3.5 years from one SR44 cell. The iGaging matches the headline accuracy figure for a fraction of the outlay and adds IP54 sealing and a data port, which is why it is the one most people should actually buy.

A digital caliper is the one measuring tool most workshops use every single day, and it is also the tool people buy worst. The listings are full of resolution figures, and resolution is the number that does not tell you how right the reading is. Accuracy is a separate, published figure, and the gap between the two is where bad purchases happen. We picked six 6 inch calipers, most of them from makers that publish real specification sheets and one best seller whose listing leaves accuracy out, then judged them on accuracy, construction, sealing and how they handle power.

RBE top pick

Mitutoyo

500-196-30 ABSOLUTE Digimatic Caliper

Buy it

The reference 6 inch caliper: published accuracy of plus or minus 0.001 inch, an absolute induction encoder that never needs re-zeroing, and a battery life measured in years.

Best for: Anyone who wants one caliper for the next decade and would rather buy the reference tool than audit a spec sheet.

$$$ · premium

Why we like it

• Accuracy of plus or minus 0.001 inch (the metric models in the same series are specified at plus or minus 0.02 mm) is stated for the full 0 to 150 mm range, not just near zero.
• The ABSOLUTE electromagnetic induction encoder holds its origin through power cycles, and Mitutoyo states the maximum response speed is unlimited, so you cannot outrun it by sliding fast.
• Mitutoyo rates the single SR44 silver oxide cell at approximately 3.5 years under normal use, and the caliper ships in a fitted plastic case.

Know before buying

• This order number is the version without the SPC data output port; if you want to log readings you need the 500-171-30 instead.
• No IP rating is published for this model, so coolant, chips and washdown mean stepping up to the separate coolant proof order numbers such as 500-752-20.
• SR44 silver oxide cells are less widely stocked than the CR2032 lithium cells the cheaper calipers use.
• It costs several times what a competent budget caliper costs for the same headline accuracy figure.

Check price on Amazon Read our detailed assessment ↓

iGaging

OriginCal 100-700-06 iP54 Absolute Digital Caliper

Buy it

Publishes the same 0.001 inch / 0.02 mm accuracy as the reference tool, adds IP54 sealing and an SPC output with USB connection available, and runs on a CR2032 you already own.

Best for: The hobby machinist, 3D printer owner or woodworker who wants a genuinely specified caliper and a data port without a premium outlay.

$ · budget

Why we like it

• iGaging publishes accuracy per order number, and the 6 inch 100-700-06 is specified at 0.001 inch / 0.02 mm at 0.0005 inch / 0.01 mm resolution.
• IP54 rating for moisture and dust, a hardened stainless steel frame, and an SPC output with USB connection available for logging readings.
• Absolute encoding memorises the origin zero, and the 3V CR2032 cell is the single most available battery format there is.

Know before buying

• IP54 is splash and dust resistance, not coolant proofing, so it is the wrong tool to leave in a flood of cutting fluid.
• Specifications are listed per order number, so check the accuracy line for the length you actually order rather than assuming the 6 inch figure carries over.
• The catalogue does not publish a jaw hardness figure or an auto power off time for this model.
• Fit and finish of the slider is a step below the Japanese tool, and the data kits are an extra purchase.

Check price on Amazon Read our detailed assessment ↓

Starrett

798B-6/150 IP67 Electronic Caliper

Buy it

IP67 sealing, an RS232 data output and a hardened stainless body on one order number, with plus or minus 0.001 inch published accuracy over the full 6 inches.

Best for: A machinist working around coolant who wants sealing and data output on the same premium caliper.

$$$ · premium

Why we like it

• Starrett publishes IP67 protection against coolant, water, chips, dust and dirt, which the Mitutoyo 500-196-30 does not carry.
• The same order number has an RS232 cabled output and works with Starrett SmartCable USB leads and DataSure wireless data collection.
• Hardened stainless steel construction, an induction type linear encoder, a slide lock and fine adjustment, shipped in a fitted plastic case.

Know before buying

• The metric accuracy is split: plus or minus 0.02 mm up to 100 mm, loosening to plus or minus 0.03 mm from 100 to 150 mm.
• Battery life is claimed at over one year on a CR2032, well short of the roughly 3.5 years Mitutoyo claims for its SR44.
• An inspection certificate is an optional add-on rather than included, and the output is cabled only, with the cable sold separately.
• It sits in the same premium tier as the Mitutoyo, and Starrett's own product data lists the country of origin as China.

Check price on Amazon Read our detailed assessment ↓

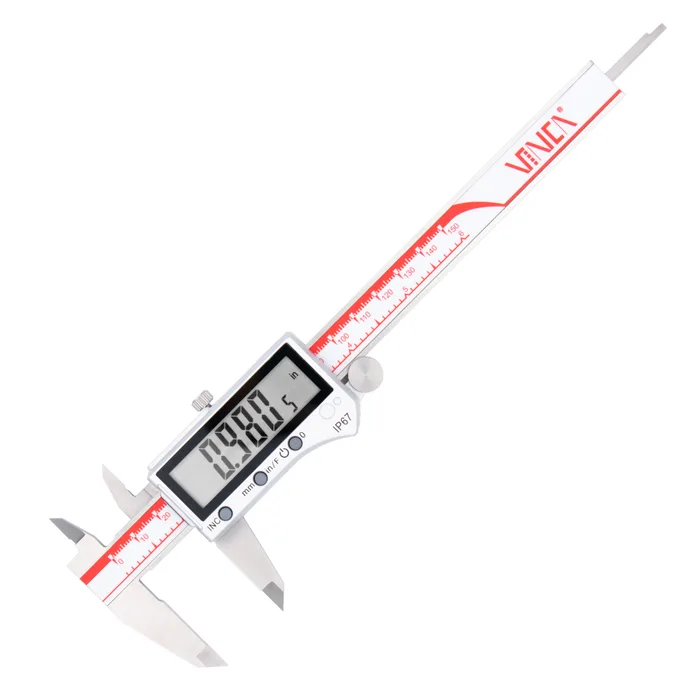

VINCA

DIPA-0605 iP67 Digital Caliper

It depends

Full IP67 coolant and water proofing with plus or minus 0.02 mm published accuracy at a mid-range price, if you can live with a thinner spec sheet.

Best for: Someone working around coolant, water or grinding dust who wants sealing they can trust without paying premium metrology prices.

$$ · mid-range

Why we like it

• IP67 rating means it is specified against water and coolant, not merely splashes, which is the single biggest durability upgrade a shop caliper can have.
• Published accuracy of plus or minus 0.001 inch / 0.02 mm at 0.0005 inch / 0.01 mm resolution puts it level with far more expensive tools on paper.
• Inch, metric and 1/128 inch fraction display plus an incremental mode that shows how far off a target size each part is.

Know before buying

• The product listing does not state a battery type, so you are ordering without knowing what cell it takes.
• This version has no data output; wireless logging means buying the DIPA-0605B variant instead.
• Auto power off is fixed at five minutes with no stated adjustment, which is a nuisance during slow layout work.
• No jaw hardness, no standard cited, and no inspection certificate offered, so the accuracy claim is the maker's word alone.

Check price on Amazon Read our detailed assessment ↓

We'd skip it

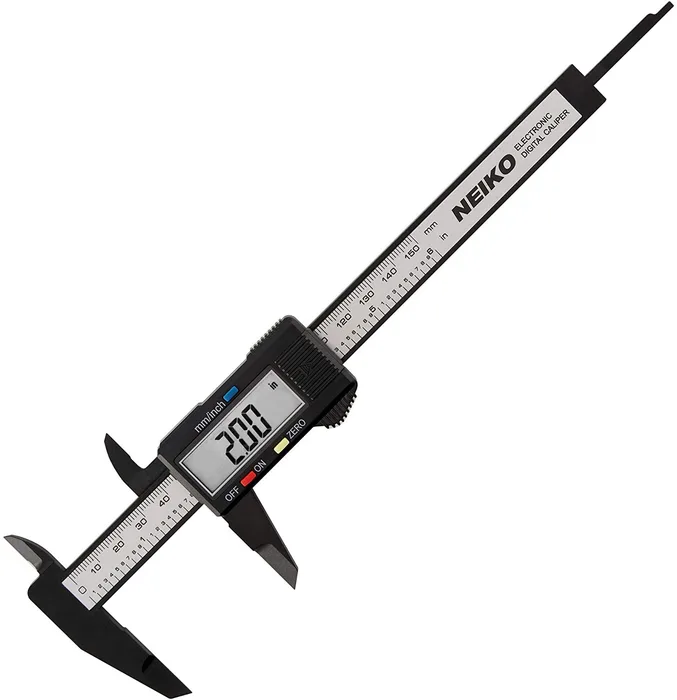

Neiko

01417A 6 Inch Digital Caliper

Skip it

An honestly specified but genuinely coarse plastic caliper: 0.1 mm resolution and plus or minus 0.2 mm accuracy, when steel calipers in the same budget tier publish 0.01 mm and 0.02 mm.

Best for: Almost nobody buying a first caliper; at most, a spare for measuring soft, painted or delicate items where a steel jaw would mark the work.

$ · budget

Why we like it

• Neiko does publish both figures, accuracy of plus or minus 0.01 inch / 0.2 mm and resolution of 0.01 inch / 0.1 mm, which is more than many budget listings manage.
• Light enough to live in a pocket or a toolbox drawer, and it will not scratch soft or painted work the way ground steel jaws can.
• Ships with an LR44 cell installed plus a spare, has an auto-off function, and zeroes at any point on the slide.

Know before buying

• Plus or minus 0.2 mm accuracy cannot confirm a press fit, a bearing seat or a 3D print tolerance; it is a rough-and-ready gauge, not a measuring instrument.
• The 0.1 mm resolution is ten times coarser than the steel calipers here, and the price tier is the same, so you give away an order of magnitude for nothing.
• The plastic beam and jaws deflect under measuring force, which stacks on top of the already loose specification rather than cancelling it.
• No IP rating, no data output and no serviceable jaw hardness figure are published.

See our pick instead See it at Amazon anyway Read our detailed assessment ↓

We'd skip it

WEN

10764 6 Inch IP54 Digital Caliper

Skip it

A stainless steel budget caliper with a fraction mode and a CR2032, but WEN publishes resolution and never states how accurate the reading is.

Best for: Nobody choosing a caliper on accuracy; the iGaging OriginCal costs a similar budget outlay and publishes its figure.

$ · budget

Why we like it

• Stainless steel construction with inch, metric and 1/128 inch fraction display, plus inside, outside, step and depth measurement.
• Runs on a 3V CR2032 cell, which is included along with a hard carrying case.
• WEN backs it with a two year warranty for home use and a US customer helpline.

Know before buying

• No accuracy figure appears on the product page or in the manual, only resolution, which is the exact gap this review warns about.
• The listing and the caliper face say IP54, while the manual's specification table says IP67, and the same manual tells you to avoid exposure to any liquids.
• No data output and no inspection certificate are published.
• The warranty drops to ninety days if the tool is used professionally or commercially.

See our pick instead See it at Amazon anyway Read our detailed assessment ↓

How we judged the field

Five things decide whether a digital caliper is worth owning. First, published accuracy: the maker has to state, in writing and per order number, how far a reading may sit from truth, and a listing that gives you resolution and nothing else is telling you it has not been tested. Second, how that accuracy is stated across the range, because error grows with length and a single headline figure often only applies to the short end. Third, construction: a stainless beam that resists flex and jaws hard enough to survive daily contact, because a bent or worn jaw quietly destroys a specification that was fine on the day it left the factory. Fourth, sealing, since coolant and grinding dust kill capacitive scales faster than anything else. Fifth, power, because a caliper with a proprietary cell or a scale that keeps counting when the screen is blank is a caliper that is flat when you need it.

The field splits cleanly into three groups. At the top are the metrology houses, Mitutoyo among them, who publish accuracy per order number and build IP67 and carbide-jaw variants of the same tool. In the middle sits a band of specification-literate value brands, iGaging and Clockwise Tools among them, who publish per-model accuracy tables that hold up to reading and offer data output options. At the bottom are the anonymous budget calipers, where the display resolution is the headline and the accuracy figure is either absent or, when it is present, an order of magnitude worse than buyers assume. We took two from the top, one from the value band, one that is unusual enough to be a conditional buy, and two budget best sellers that move in enormous numbers and should not.

The Mitutoyo 500-196-30 is what everyone else is measured against, and the spec sheet explains why. It is a 0 to 6 inch, 0 to 150 mm caliper with 0.0005 inch / 0.01 mm resolution and a published accuracy of plus or minus 0.001 inch, which Mitutoyo states for the whole range rather than the easy part of it. The scale is an ABSOLUTE electromagnetic induction encoder, so it holds its origin through power cycles and Mitutoyo lists the maximum response speed as unlimited, meaning you cannot generate a false reading by sliding it quickly. One SR44 silver oxide cell is rated at roughly 3.5 years under normal use. The trade-off is specific: this particular order number has no SPC data output port, and no IP rating is published for it, so a wet shop needs one of the separate coolant proof numbers. It is for the person who wants to buy once and stop reading spec sheets.

The iGaging OriginCal 100-700-06 is the interesting one, because it publishes the same headline number as the Japanese tool. iGaging’s own catalogue specifies the 6 inch model at 0.001 inch / 0.02 mm accuracy with 0.0005 inch / 0.01 mm resolution, on a stainless steel frame, with an iP54 rating for moisture and dust and an SPC data output with USB connection available. Power is a 3V CR2032, the most available cell on earth, and the absolute encoding memorises the origin zero so it wakes up where you left it. What you give up is margin and finish: iP54 is splash resistance, not coolant proofing, the slider feel is a rung below the reference tool, and accuracy is listed per order number, so check the line for the length you buy. For a bench that stays broadly dry, this is the sensible buy.

The Starrett 798B-6/150 answers the gap the Mitutoyo 500-196-30 leaves open: it puts IP67 sealing and a data output on the same order number. Starrett specifies protection against coolant, water, chips, dust and dirt, a hardened stainless steel body, an induction type linear encoder, 0.0005 inch / 0.01 mm resolution and an RS232 cabled output that feeds its SmartCable USB leads and DataSure wireless system. The inch accuracy is plus or minus 0.001 inch over the full 0 to 6 inch range. The metric line is where you have to read closely: plus or minus 0.02 mm up to 100 mm, then plus or minus 0.03 mm from 100 to 150 mm, so the last third of the beam is specified looser than the Mitutoyo. Power is one CR2032 claimed at over a year, auto off comes after 30 minutes without losing position, and an inspection certificate costs extra. For a wet production shop that logs readings, it is the premium caliper to buy.

The VINCA DIPA-0605 exists for one reason: it is iP67 rated at a mid-range price. Dust tight and protected against temporary immersion is a genuinely different class of protection from splash resistance, and it is normally something you pay premium metrology money for. The rest of the sheet holds up too, with a stainless steel body, plus or minus 0.001 inch / 0.02 mm published accuracy, 0.0005 inch / 0.01 mm resolution, a 1/128 inch fraction mode that woodworkers will use, and an incremental mode that shows how far each part sits from a target size. The gaps are real, though. The listing does not state what battery it takes, this version has no data output at all, auto power off is fixed at five minutes, and there is no inspection certificate or cited standard behind the accuracy claim. Buy it if your workshop is wet and you accept a thinner paper trail.

The Neiko 01417A is the caliper that sells in enormous numbers and should not. To Neiko’s credit the figures are published rather than hidden: 0 to 6 inch and 0 to 150 mm range, resolution of 0.01 inch / 0.1 mm, accuracy of plus or minus 0.01 inch / 0.2 mm, an LR44 cell with a spare in the box and a physical on and off control. Read those numbers next to the others on this page and the problem is obvious. The resolution is ten times coarser and the accuracy roughly ten times worse than a stainless caliper sitting in the same budget tier, so you are not saving anything, you are just buying less tool. The plastic beam and jaws make it worse, because they deflect under measuring force and add error on top of an already loose specification. It cannot confirm a bearing seat, a press fit or a 3D print tolerance. It is for measuring soft or painted items you do not want scratched, and nothing else.

The WEN 10764 is one of the most widely sold budget calipers, and on the surface it looks like a fair rival to the iGaging: a stainless steel body, 0 to 150 mm / 0 to 6 inch range, 0.0005 inch / 0.01 mm resolution, a 1/128 inch fraction mode, a CR2032 cell in the box and a two year home use warranty. The problem is what the paperwork leaves out. Neither the product page nor the manual gives an accuracy figure, only resolution, and the product copy even says the resolutions provide maximum accuracy, which is the confusion this whole review is about. The sealing story does not hold together either: the listing and the caliper face say IP54, the manual’s specification table says IP67, and the same manual says to avoid exposure to any liquids and never to immerse it. The iGaging OriginCal sits in the same budget tier with a published 0.02 mm accuracy and IP54, so skip this one unless accuracy truly does not matter to you.

Who should buy which

• Buy once and stop thinking about it: the Mitutoyo 500-196-30 ABSOLUTE Digimatic Caliper. Full range plus or minus 0.001 inch accuracy, an absolute encoder and roughly 3.5 years per SR44 cell.
• Home shop, 3D printing or woodworking on a budget: the iGaging OriginCal 100-700-06 iP54 Absolute Digital Caliper. The same published 0.02 mm accuracy as the reference tool, plus IP54 and an SPC output, for a budget outlay.
• Wet production shop that logs readings: the Starrett 798B-6/150 IP67 Electronic Caliper. IP67 sealing and an RS232 output on one order number, backed by a full published accuracy table.
• Wet workshop on a mid-range budget: the VINCA DIPA-0605 iP67 Digital Caliper. IP67 at a mid-range price, as long as you can live without a data port or a stated battery type.
• Measuring soft or painted parts only: the Neiko 01417A 6 Inch Digital Caliper. Plastic jaws will not mark delicate work, but the plus or minus 0.2 mm accuracy rules it out for anything that needs a fit.

Mitutoyo 500-196-30 ABSOLUTE Digimatic Caliper vs iGaging OriginCal 100-700-06 iP54 Absolute Digital Caliper: which should you buy?

The choice between the Mitutoyo 500-196-30 and the iGaging OriginCal 100-700-06 is not really a fight about accuracy, because both makers publish the same headline figure for a 6 inch caliper: plus or minus 0.001 inch, or 0.02 mm. What separates them is everything around the number. Mitutoyo backs it with an absolute induction encoder with unlimited response speed, and a silver oxide cell rated at about 3.5 years, and it has a spare-parts and calibration ecosystem behind it. iGaging backs it with an iP54 rating the Mitutoyo does not have, an SPC output the Mitutoyo model does not have, a CR2032 you can buy anywhere, and a far smaller outlay.

So choose on how you work rather than on prestige. If the caliper is going to be checked against gauge blocks, used for inspection anyone else relies on, or simply expected to still be right in ten years, buy the Mitutoyo and accept that the data port lives on a different order number. If you want a specified tool for a home shop, a print farm or a woodworking bench, want to log readings, and would rather put the difference towards a decent micrometer, buy the iGaging. The one thing not to do is spend the Mitutoyo money on an unspecified caliper because it displayed more digits.

What to look for

• Accuracy, stated separately from resolution: the display step tells you what the screen can show, and only the published accuracy figure tells you how far from truth the reading may sit.
• Accuracy quoted across the whole range: error can grow with length, and Mitutoyo loosens its inch specification to 0.0015 inch at 12 inches, so check the number for the size you are actually buying.
• A stainless steel beam and jaws: plastic and composite beams flex under measuring force, and that deflection lands directly on the reading rather than cancelling out.
• An IP rating that matches the room: IP54 is dust protected and splash resistant, IP67 is dust tight and survives temporary immersion, and for a dry bench neither is worth trading accuracy for.
• A common battery and a real off control: a CR2032, LR44 or SR44 you can buy locally beats a proprietary cell, and a caliper that genuinely powers down rather than dimming the screen is one you will not find flat.
• A data port if you will ever log readings: SPC, USB or Bluetooth output is usually a different order number rather than an add-on, so decide before you buy rather than after.

Our final take

Buy the Mitutoyo 500-196-30 if you want the reference tool, and the iGaging OriginCal 100-700-06 if you want the same published accuracy plus sealing and a data port for a fraction of the outlay. Take the VINCA DIPA-0605 only if your workshop is genuinely wet, because IP67 at a mid-range price is a real bargain and the thinner spec sheet is the cost of it. Pick the Starrett 798B-6/150 over the Mitutoyo if you need IP67 sealing and a data port on the same tool. Leave the Neiko 01417A and the WEN 10764 on the shelf. And whichever you buy, remember that the specification is a ceiling, not a promise: a caliper does not obey Abbe’s principle, so measuring near the beam with a light, constant force is worth more than any extra digit on the display.

Deciding between the top two? See our head-to-head: Mitutoyo 500-196-30 ABSOLUTE Digimatic Caliper vs iGaging OriginCal 100-700-06 iP54 Absolute Digital Caliper.
